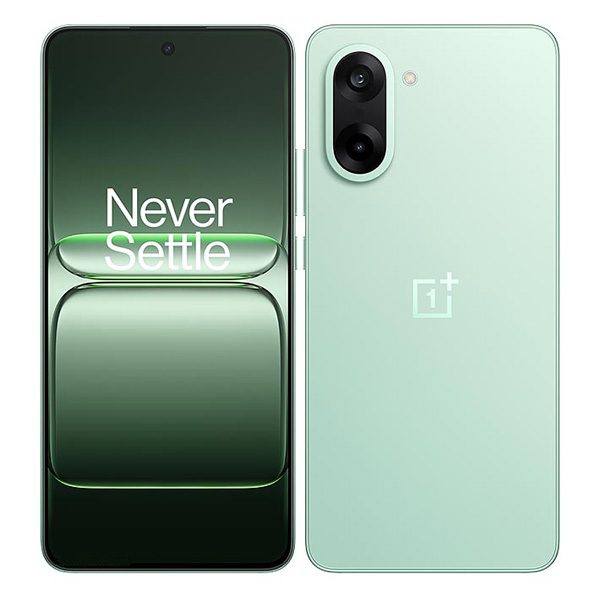

OnePlus Ace 5 Racing
OnePlus Ace 5 Racing Full Specifications
General
| Brand | OnePlus |
| Name | OnePlus Ace 5 Racing |
| Model | Ace 5 Racing |
| Category | Smartphone |
| Price |
Unofficial: (12GB+256GB) 48,000 Taka (12GB+512GB) 54,000 Taka (16GB+512GB) 61,000 Taka |
Launch
| Launch Announcement | 27 May 2025 |
| Launch Date | Available. Released 27 May 2025 |
Network
| Network Type | GSM / HSPA / LTE / 5G |
| Network 2G | GSM 850 / 900 / 1800 / 1900 |
| Network 3G | HSDPA 850 / 900 / 2100 |
| Network 4G | 1, 3, 4, 5, 8, 19, 28, 34, 38, 39, 40, 41, 42, 48, 66 |
| Network 5G | 1, 3, 4, 5, 8, 19, 28, 34, 38, 39, 40, 41, 42, 48, 66 |
| Speed | HSPA, LTE, 5G |
| GPRS | |
| EDGE |
Body
| Body Dimensions | 163.6 x 76 x 8.2 mm (6.44 x 2.99 x 0.32 in) |
| Body Weight | 200 g (7.05 oz) |
| Network Sim | Nano-SIM + Nano-SIM |
Display
| Display Type | AMOLED, 1B colors, 120Hz, HDR Vivid, 800 nits (typ), 1300 nits (HBM) |
| Display Size | 6.77 inches, 111.5 cm2 (~89.7% screen-to-body ratio) |
| Display Resolution | 1080 x 2392 pixels |
| Display Multitouch | |
| Display Density | ~387 ppi density |
| Display Screen Protection | Crystal Shield Glass |
Platform
| Operating System | Android |
| OS Version | Android 15 |
| UI (User Interface) | ColorOS 15 |
| CPU | Octa-core (1x3.4 GHz Cortex-X4 & 3x2.85 GHz Cortex-X4 & 4x2.0 GHz Cortex-A720) |
| GPU | Immortalis-G720 MC12 |
| Chipset | Mediatek Dimensity 9400e (4 nm) |
Memory
| Memory Internal | 256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, UFS 4.0 |
| Memory External | No |
| Ram | 12GB RAM, 16GB RAM |
Camera
| Primary Camera |
Dual: 50 MP, f/1.8, 26mm (wide), 1/1.95", 0.8µm, PDAF, OIS 2 MP, f/2.4, (depth) |
| Secondary Camera | Single: 16 MP, f/2.4, 23mm (wide), 1/3", 1.0µm |
| Camera Features | LED flash, HDR, panorama |
| Video | 4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS |
Sound
| Loudspeaker | Yes |
| 3.5mm Jack | No |
Connectivity
| WiFi | Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band |
| Bluetooth | 5.4, A2DP, LE, aptX HD, LHDC 5 |
| NFC | |
| Infrared Port | |
| USB | USB Type-C 2.0 |
| Fm Radio | No |
| GPS | GPS, GALILEO, GLONASS, BDS, QZSS |
Features
| Sensors |
Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
Battery
| Battery Type | non-removable |
| Battery Capacity | Si/C Li-Ion 7100 mAh |
| Charging |
80W wired, 33W PPS, 18W PD/QC Bypass charging |
More
| Body Color | Black, White, Green |
| Others Feature |
IP64 dust tight and water resistant (water splashes) |
| Made By | China |
